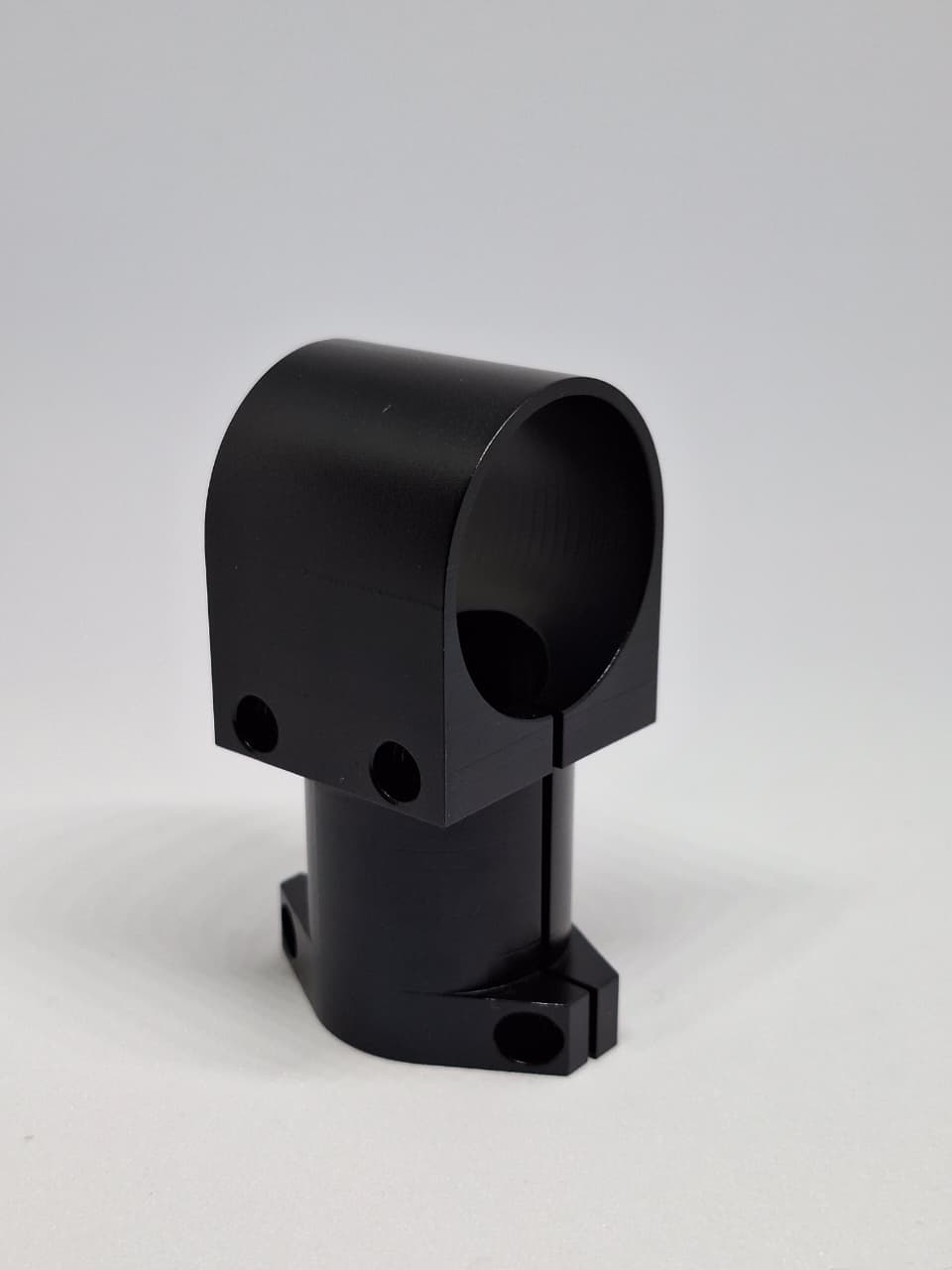

T-joint, 3/4 view
Available sizes
Other tube diameters, arm lengths and mounting patterns are machined to order.
- Locking method
- Split clamp, M3 stainless
- Lead time
- 2 weeks
- Minimum order
- No minimum
- Weight
- 22 g
- Price
- On request
T-Connectors & Tube Clamps
Machined aluminium tube joints for airframe construction. Four geometries — T, cross, elbow and inline — each in 16 to 30 mm, in matched or stepped diameters.

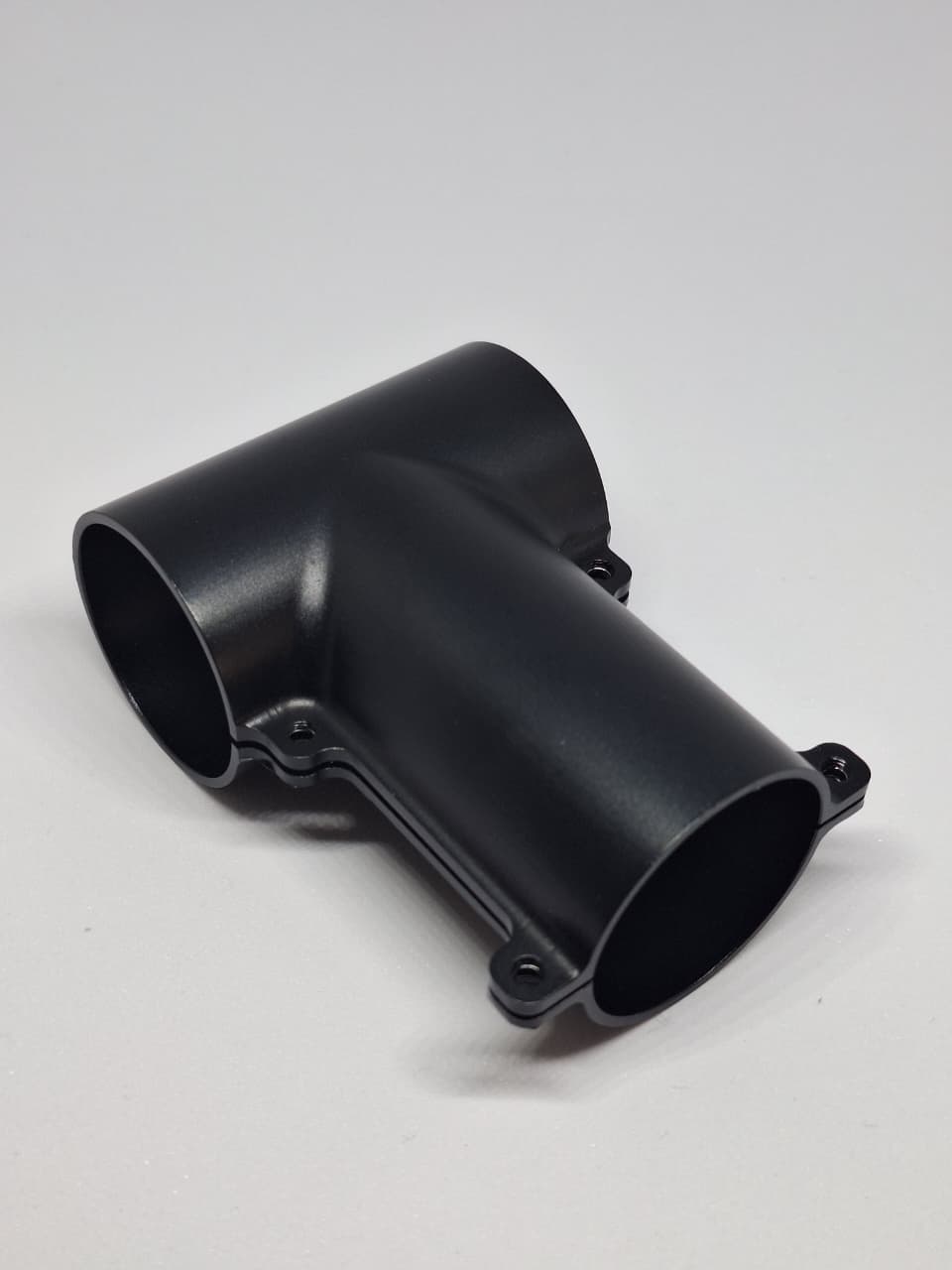

- Four geometries: T-joint, cross joint, elbow joint, inline clamp
- Split clamp construction, M3 stainless fasteners
- 6061-T6 aluminium, hard anodised black or natural
- Matched or stepped tube diameters on request
Choose a mechanism

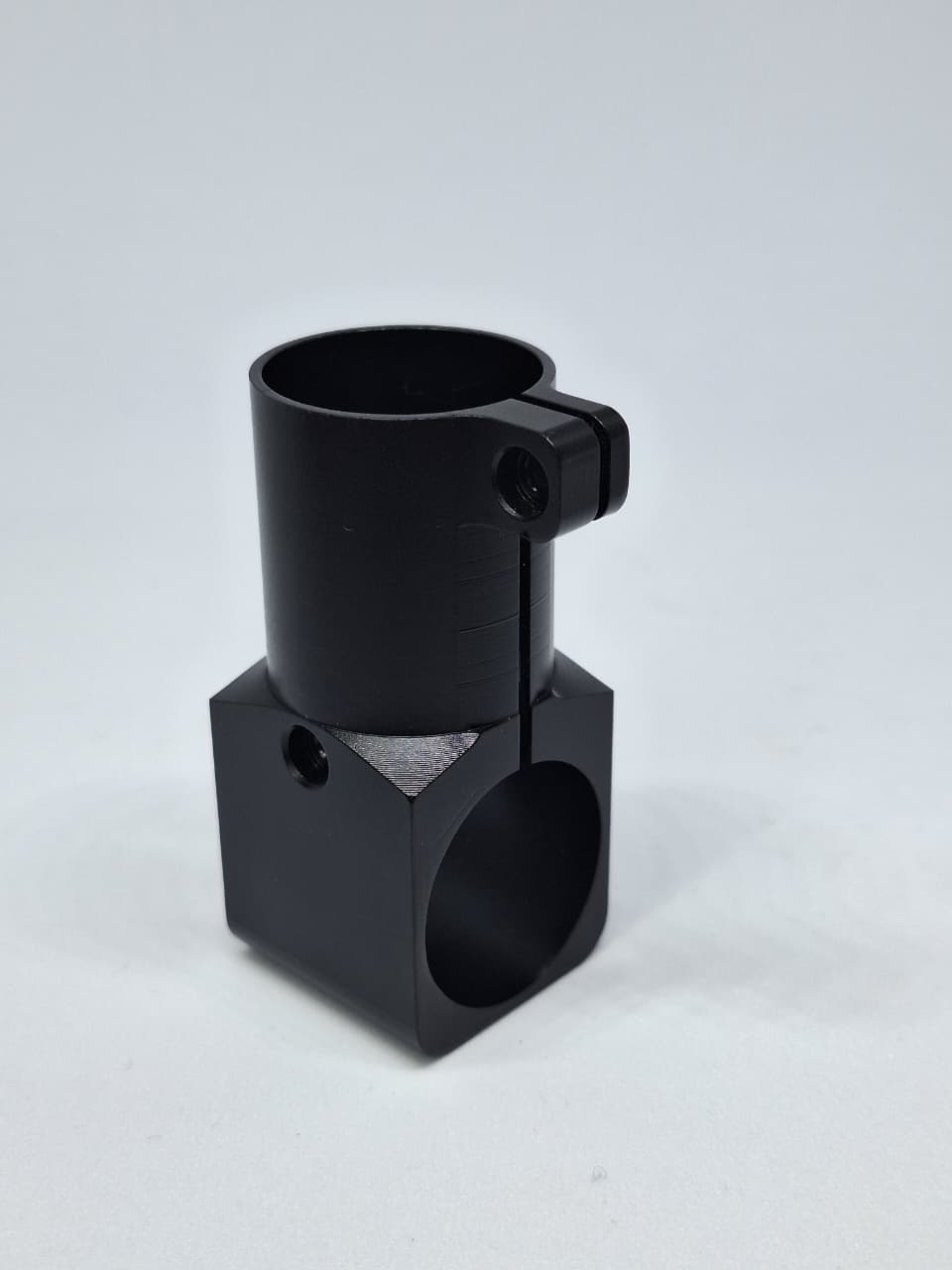

Two tubes meeting at 90°, the standard airframe junction.

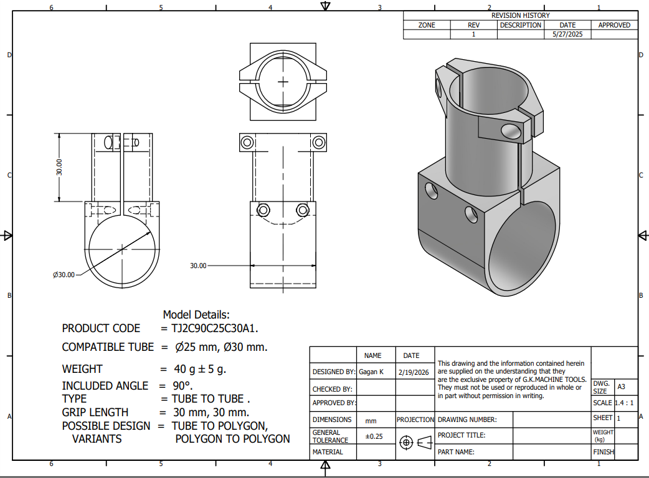

Download drawing (PDF)
Custom sizes, finishes and mounting patterns available. Tell us your platform.
Specifications
| Material | 6061-T6 aluminium |
|---|---|
| Finish | Hard anodised black or natural |
| Fastener spec | M3 stainless |
| Clamp type | Split clamp |
What we can change
- GeometryT-joint, cross joint, elbow joint or inline clamp.
- Diameter16 to 30 mm, matched or stepped between the two sides.
- FinishNatural or black anodised.
- MarkingLaser-marked part number or logo on request.
Send us a drawing and we'll quote against it.
Downloads
Dimensioned drawing (PDF)3D model (STEP)
CAD files released on request.
