Landing Gear-to-Airframe Joints
The load-bearing interface between landing gear legs and the airframe body, machined to distribute landing loads into the centre structure.
- Sizes 20 / 25 / 30 mm
- 6061-T6 aluminium billet
- Bolt pattern matched to your centre plate
- Splay angle configurable
Download drawing (PDF)
Custom sizes, finishes and mounting patterns available. Tell us your platform.
Specifications
| Material | 6061-T6 aluminium |
|---|---|
| Sizes | 20 / 25 / 30 mm |
| Finish | Hard anodised |
What we can change
- Bolt patternMatched to your centre plate.
- Leg diameter20, 25 or 30 mm as standard, others to order.
- Splay angleSet to your undercarriage geometry.
Send us a drawing and we'll quote against it.
Downloads

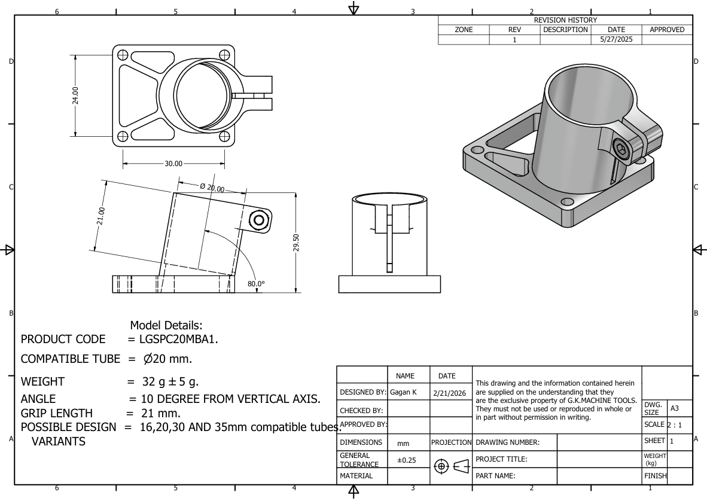

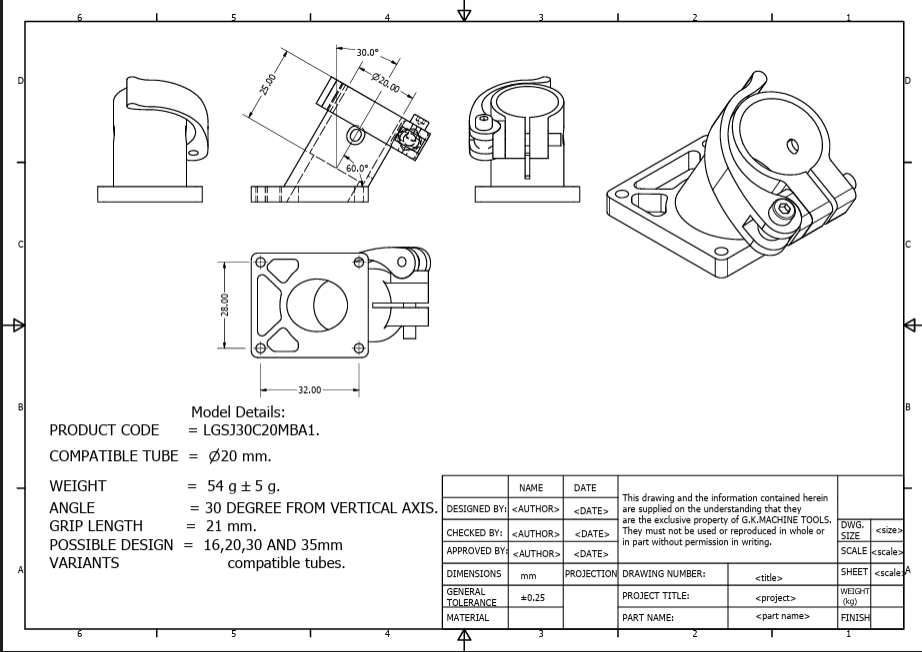

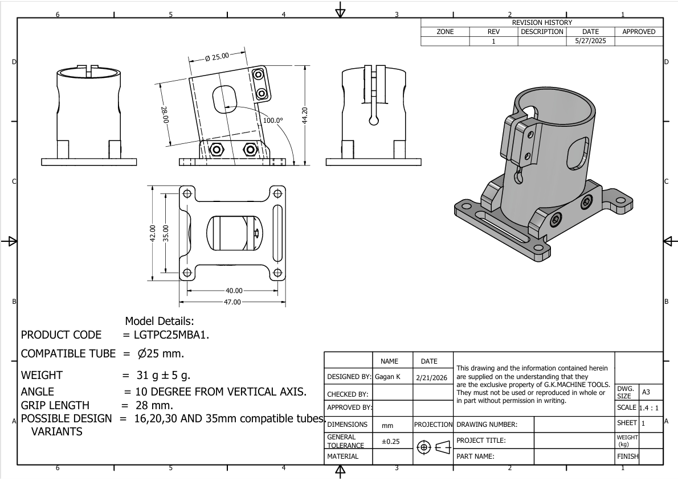

Dimensioned drawing (PDF)3D model (STEP)
CAD files released on request.
