Home/Products/Structural Systems/Folding Arm Mechanisms

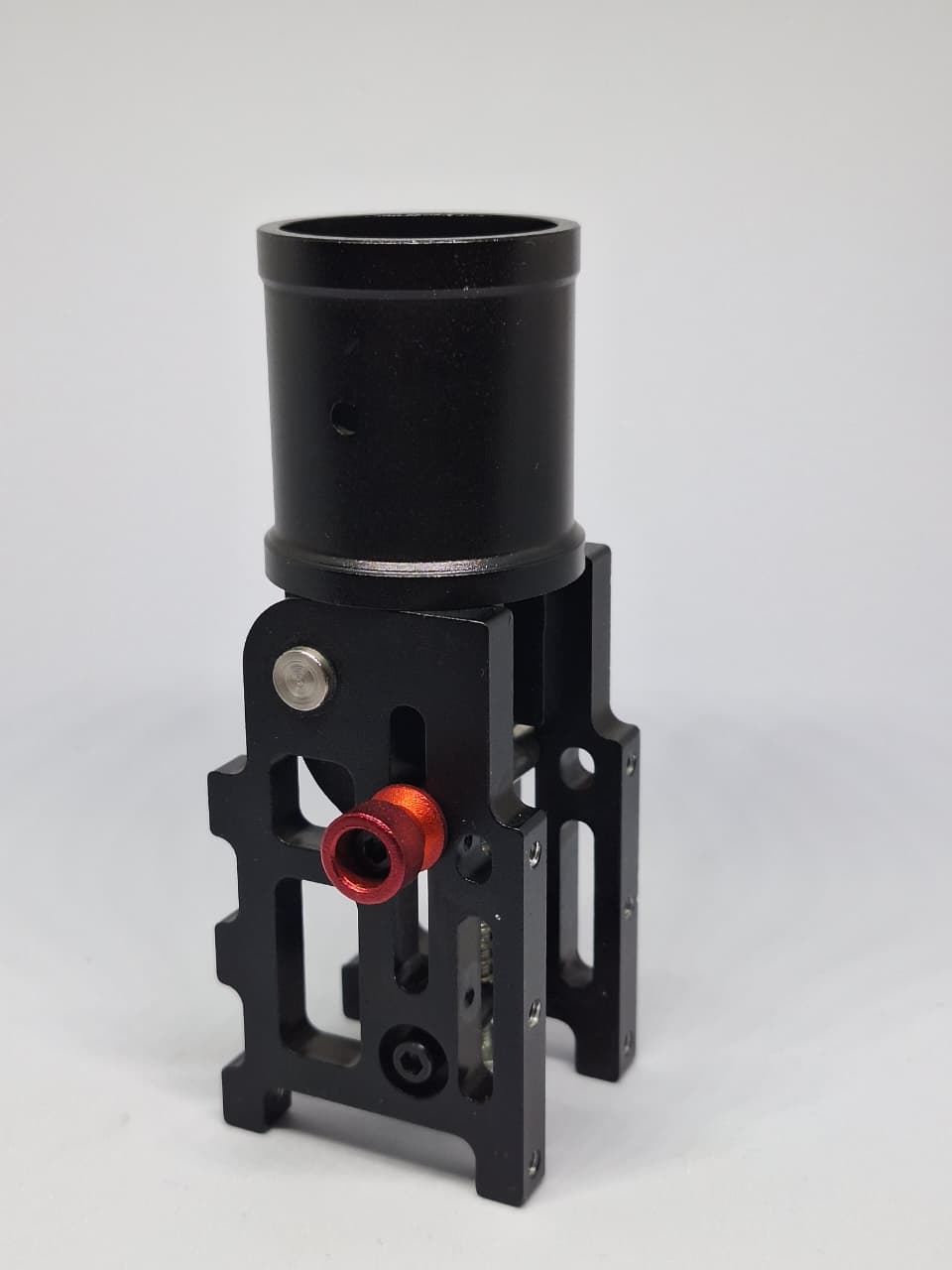

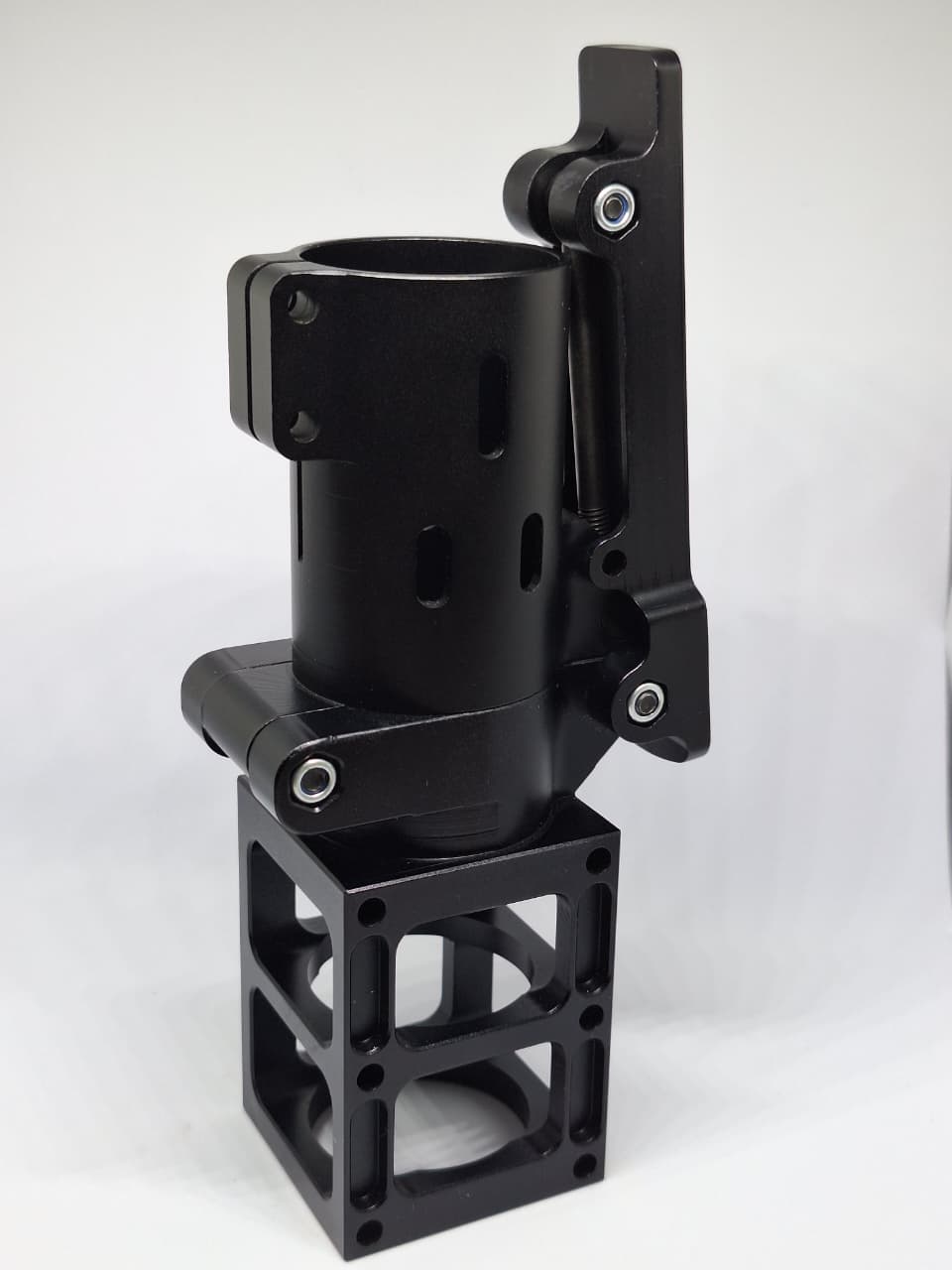

Type 1, 3/4 view
Available sizes
Other tube diameters, arm lengths and mounting patterns are machined to order.
- Locking method
- Machined linkage with captive pin
- Lead time
- 2–3 weeks
- Minimum order
- No minimum
- Weight
- 48 g
- Price
- On request
Folding Arm Mechanisms

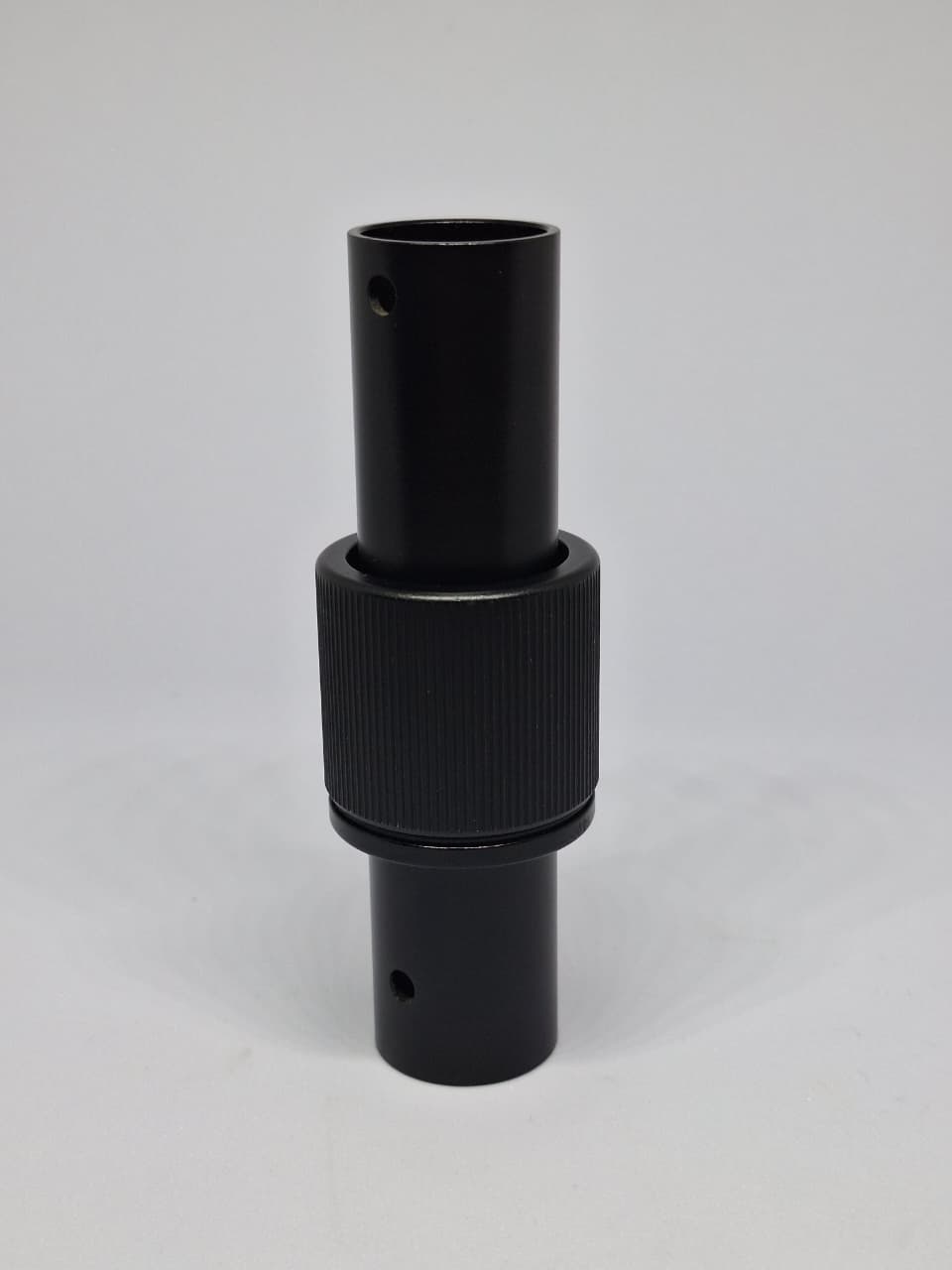

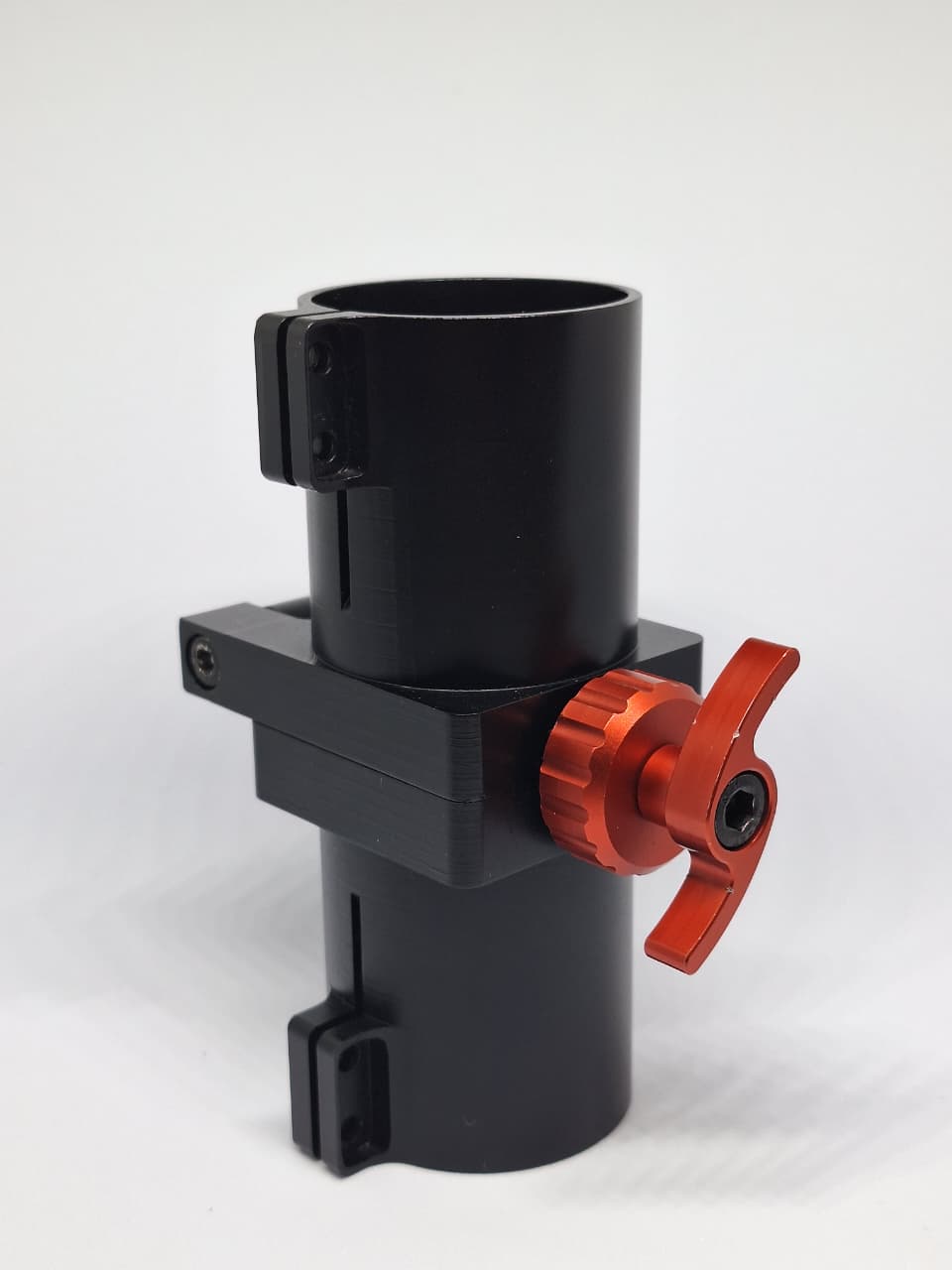

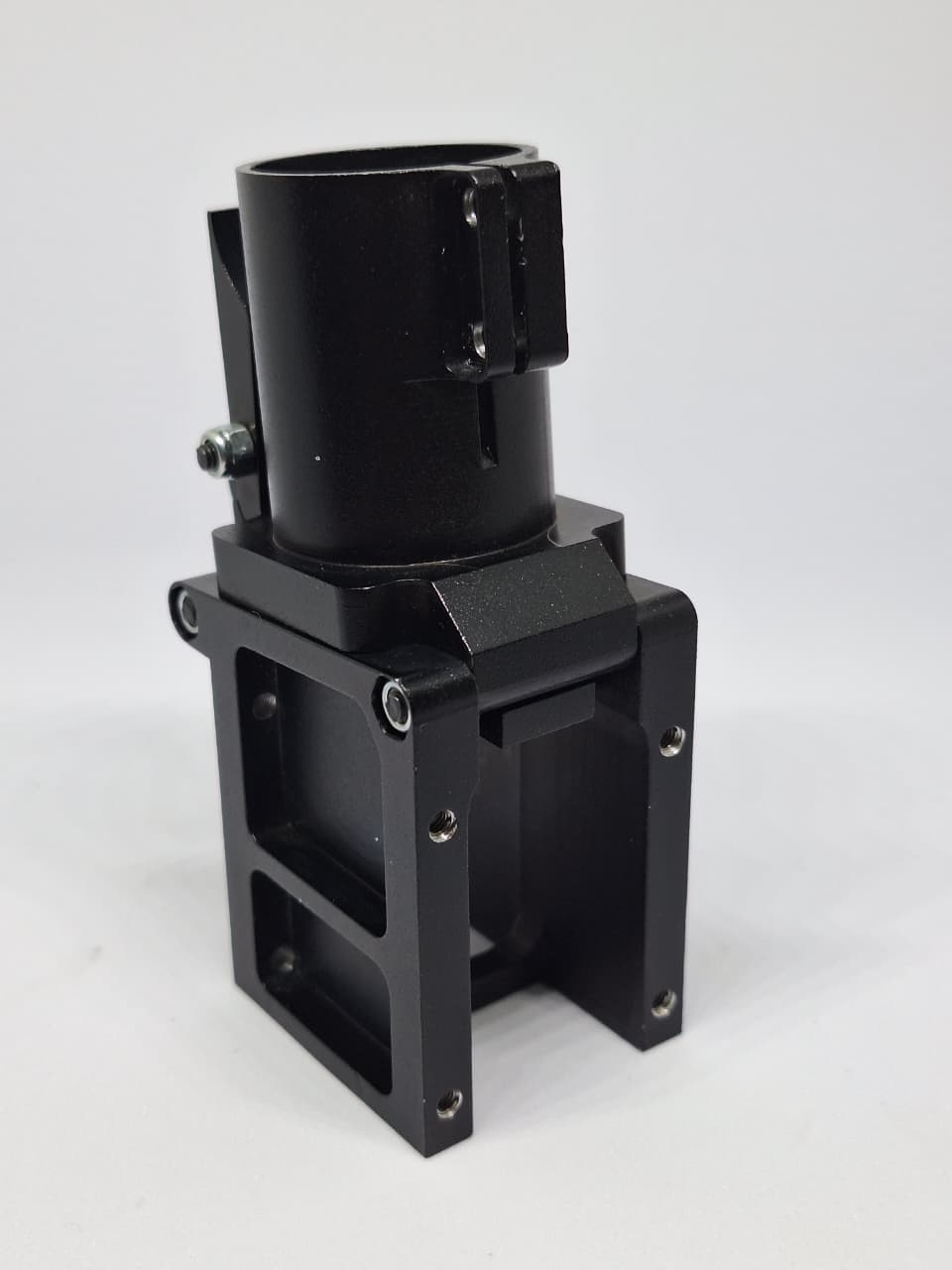

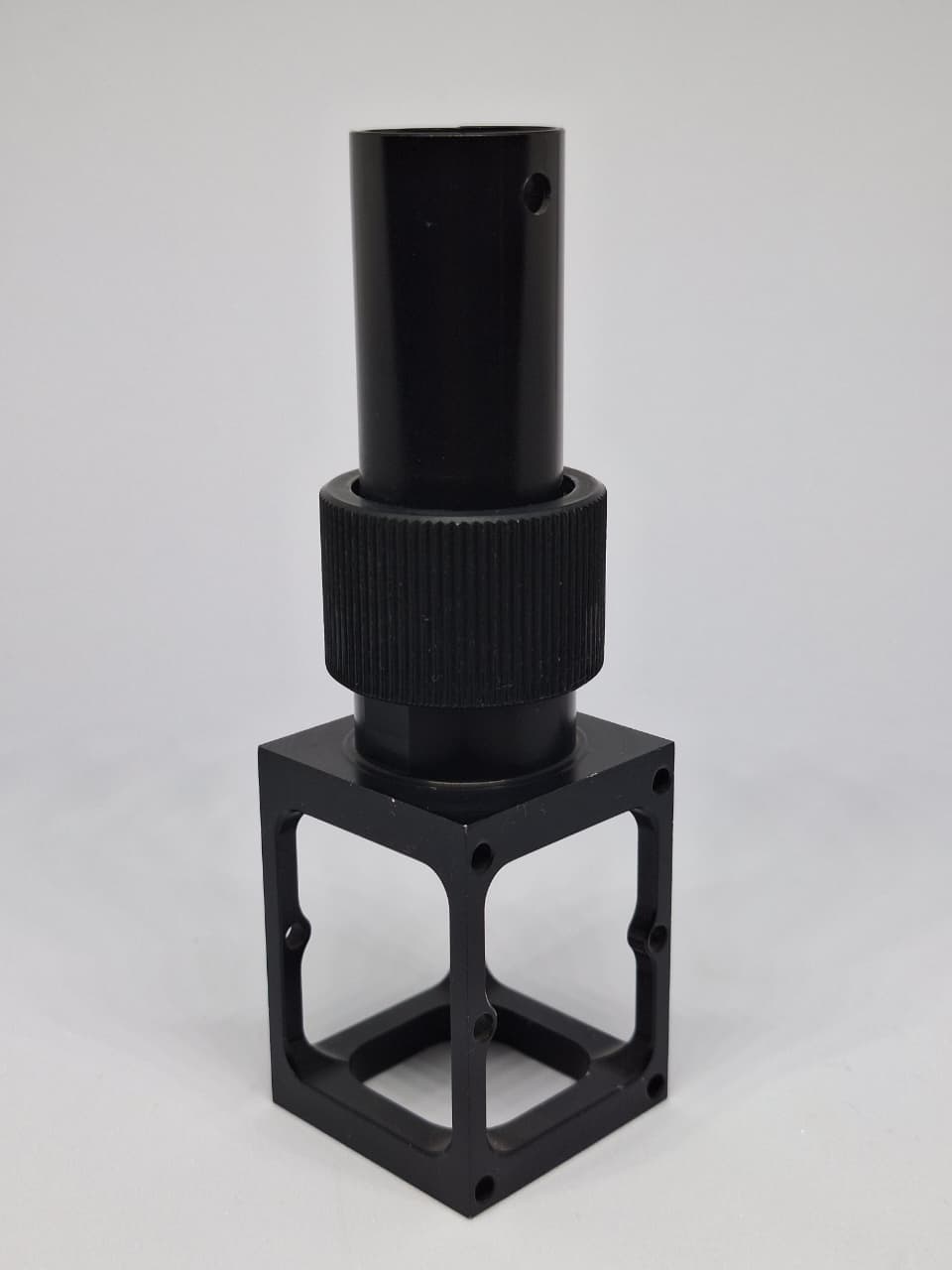

Six machined mechanisms for folding or breaking down a multirotor arm, each with a different locking method. Every type is made in tube diameters from 20 to 50 mm, to your arm length and mounting pattern.
- Six types, each with a different locking method — pick the one that suits your fold cycle and payload
- Positive mechanical lock on every type, none relying on friction alone
- Tube diameters from 20 to 50 mm across the range, others machined to order
- Machined from 6061-T6 billet, hard anodised
- Serviceable — hinge pin and lock replaceable in the field
Choose a mechanism

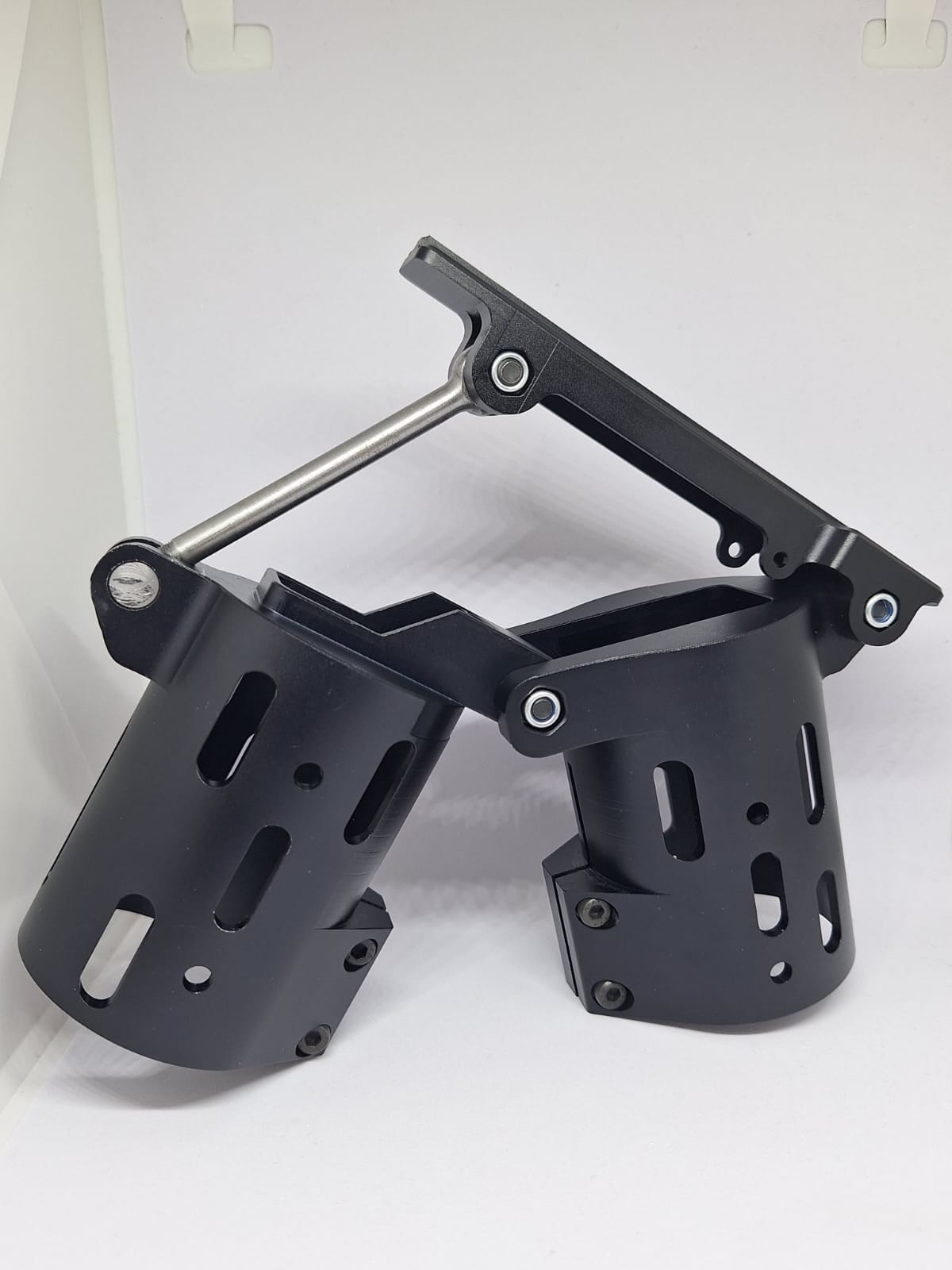

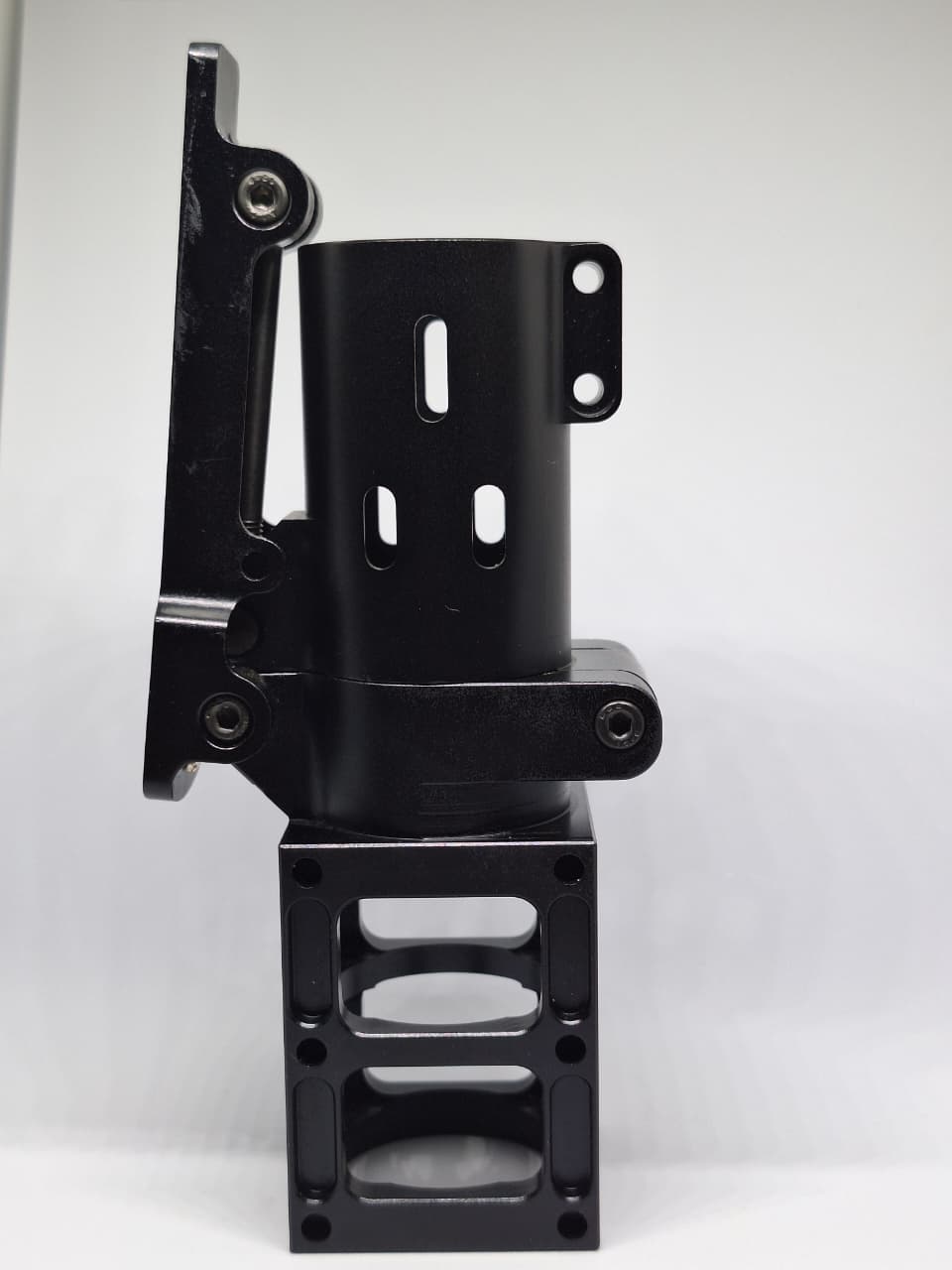

Folds vertically on a machined linkage against a flat mounting plate. The linkage carries the load away from the hinge pin, which suits heavier arms and repeated cycling.
Custom sizes, finishes and mounting patterns available. Tell us your platform.
Specifications
| Material | 6061-T6 aluminium billet |
|---|---|
| Mechanism types | Type 1 – Type 6Each type locks differently — see the selector above |
| Tube diameters | 20 – 50 mmRange varies by type; other diameters to order |
| Fold angle | 90° standardOther angles configurable |
| Fastener spec | M3 / M4 stainless |
| Finish | Hard anodised, 20–25 µm |
What we can change
- Mechanism typeSix locking mechanisms in the range. Tell us your fold cycle and payload and we will recommend one.
- Tube diameter20 to 50 mm across the range. Other diameters are machined to order.
- Arm lengthMade to your specified length — tell us the motor-to-centre dimension.
- Mounting hole patternMatched to your centre plate or motor mount.
- Material6061-T6 as standard; 7075 and other alloys on request.
- FinishNatural, black anodised, or anodised to your brand colour.
- Fold angle and lockAngle and latch style configured to your airframe.
- MarkingParts can be laser-marked with your part number or logo.

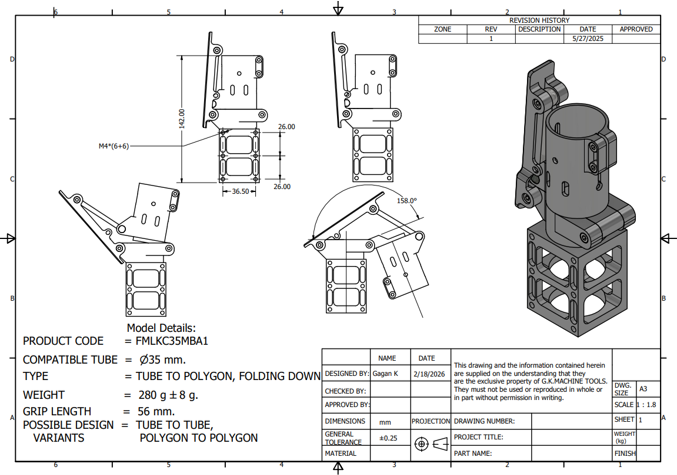

Send us a drawing and we'll quote against it.
Applications
Compatibility
Downloads
CAD files released on request.
Request a quote
We reply within 24 working hours.* Sundays and public holidays excepted.
